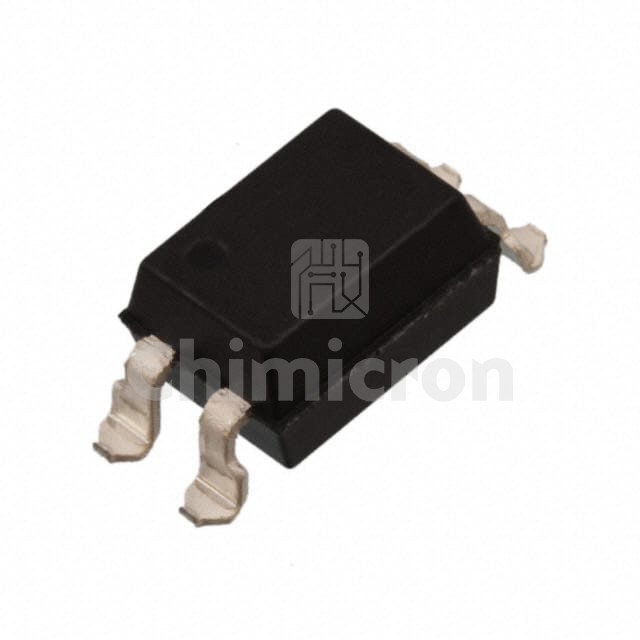

SFH615A-2XSM
Manufacturer: Isocom Components
Description: OPTOISOLATOR 5.3KV TRANS 4SMD
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:141728
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SFH615A-2XSM Isocom Components at chimicron.com. We have 141728 pieces of SFH615A-2XSM in stock available now. Submit an inquiry for SFH615A-2XSM or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Number of Channels1
Voltage - Isolation5300Vrms
Current Transfer Ratio (Min)63% @ 10mA
Current Transfer Ratio (Max)125% @ 10mA
Turn On / Turn Off Time (Typ)4.2µs, 23µs
Rise / Fall Time (Typ)3µs, 14µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)70V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.65V (Max)
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)400mV
Operating Temperature-30°C ~ 100°C
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package-
