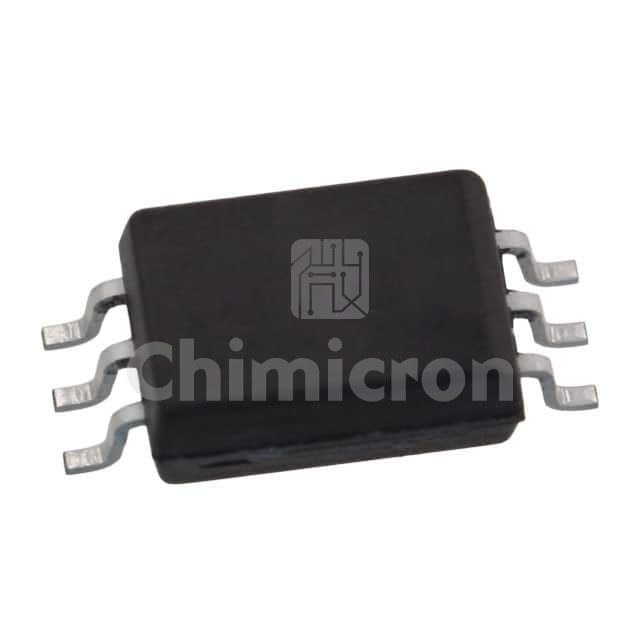

ACPL-W50L-060E
Manufacturer: Broadcom
Description: OPTOISO 5KV TRANS 6-SO STRETCHED
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:2940
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ACPL-W50L-060E Broadcom at chimicron.com. We have 2940 pieces of ACPL-W50L-060E in stock available now. Submit an inquiry for ACPL-W50L-060E or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)93% @ 3mA
Current Transfer Ratio (Max)200% @ 3mA
Turn On / Turn Off Time (Typ)200ns, 380ns
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)24V
Current - Output / Channel8mA
Voltage - Forward (Vf) (Typ)1.5V
Current - DC Forward (If) (Max)20 mA
Vce Saturation (Max)-
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.268", 6.80mm Width)
Supplier Device Package6-SO Stretched
