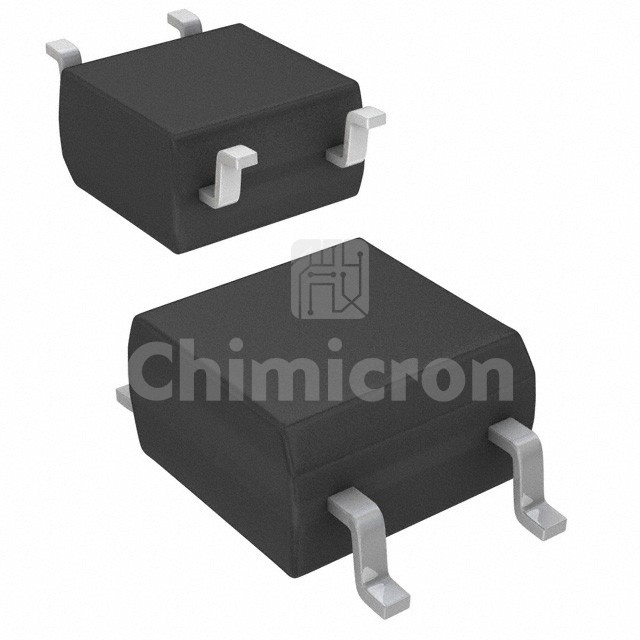

TLP3906(TPL,E
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: OPTOISO 3.75KV PHVOLT SO6
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:42000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TLP3906(TPL,E Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 42000 pieces of TLP3906(TPL,E in stock available now. Submit an inquiry for TLP3906(TPL,E or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Number of Channels1
Voltage - Isolation3750Vrms
Current Transfer Ratio (Min)-
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)200µs, 300µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypePhotovoltaic
Voltage - Output (Max)7V
Current - Output / Channel12µA
Voltage - Forward (Vf) (Typ)1.65V
Current - DC Forward (If) (Max)30 mA
Vce Saturation (Max)-
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.179", 4.55mm Width), 4 Leads
Supplier Device Package6-SO, 4 Lead
