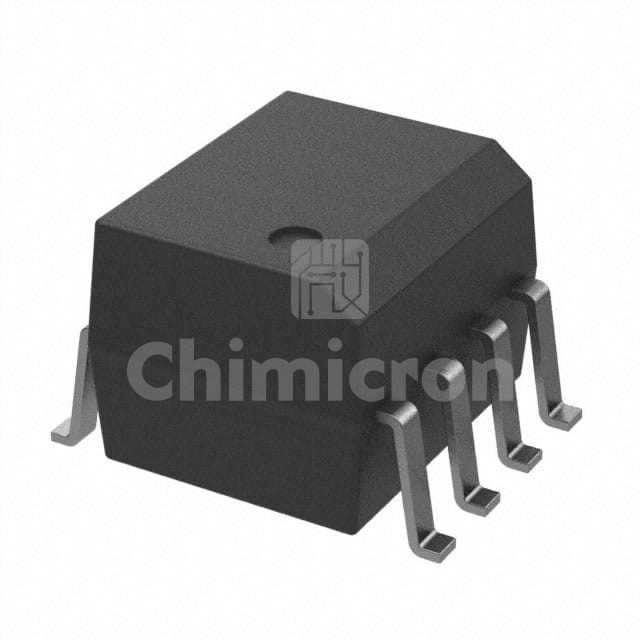

HCPL0731R2
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: OPTOCOUPLER DARL 2CHAN 8SOIC
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:269400
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the HCPL0731R2 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 269400 pieces of HCPL0731R2 in stock available now. Submit an inquiry for HCPL0731R2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Number of Channels2
Voltage - Isolation2500Vrms
Current Transfer Ratio (Min)400% @ 500µA
Current Transfer Ratio (Max)5000% @ 500µA
Turn On / Turn Off Time (Typ)300ns, 1.6µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeDarlington
Voltage - Output (Max)18V
Current - Output / Channel60mA
Voltage - Forward (Vf) (Typ)1.35V
Current - DC Forward (If) (Max)20 mA
Vce Saturation (Max)-
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
