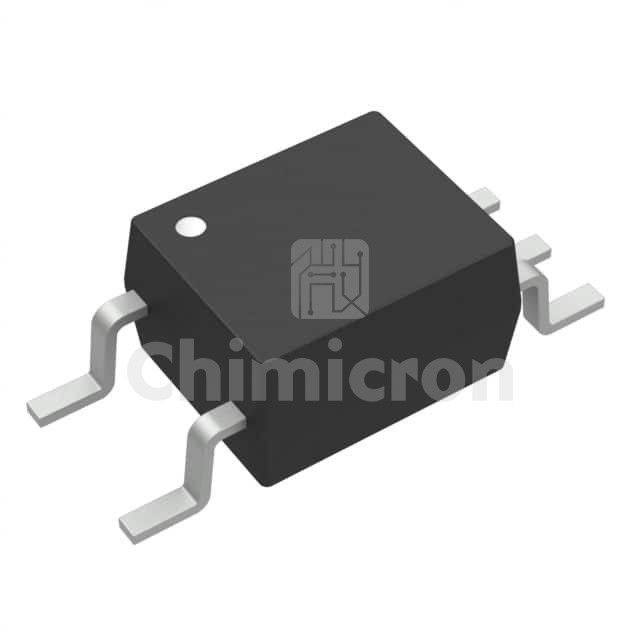

ACPL-M49T-500E
Manufacturer: Broadcom
Description: OPTOISOLATOR 4KV TRANSISTOR 5-SO
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: R²Coupler™
In Stock:60000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ACPL-M49T-500E Broadcom at chimicron.com. We have 60000 pieces of ACPL-M49T-500E in stock available now. Submit an inquiry for ACPL-M49T-500E or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesR²Coupler™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Number of Channels1
Voltage - Isolation4000Vrms
Current Transfer Ratio (Min)32% @ 10mA
Current Transfer Ratio (Max)80% @ 10mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)20V
Current - Output / Channel8mA
Voltage - Forward (Vf) (Typ)1.5V
Current - DC Forward (If) (Max)20 mA
Vce Saturation (Max)-
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package5-SO
