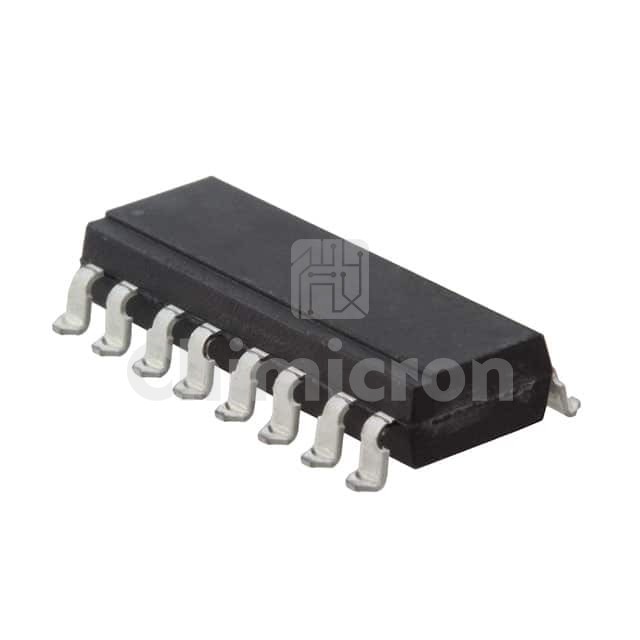

PS2505L-4-A
Manufacturer: Renesas Electronics America
Description: OPTOISOLTR 5KV 4CH TRANS 16-SMD
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: NEPOC
In Stock:6300
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PS2505L-4-A Renesas Electronics America at chimicron.com. We have 6300 pieces of PS2505L-4-A in stock available now. Submit an inquiry for PS2505L-4-A or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNEPOC
PackageTube
Part StatusNot For New Designs
Number of Channels4
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)80% @ 5mA
Current Transfer Ratio (Max)600% @ 5mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)3µs, 5µs
Input TypeAC, DC
Output TypeTransistor
Voltage - Output (Max)80V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.17V
Current - DC Forward (If) (Max)80 mA
Vce Saturation (Max)300mV
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case16-SMD, Gull Wing
Supplier Device Package16-SMD
