HCPL2530
Manufacturer: Rochester Electronics
Description: LOGIC IC OUTPUT OPTOCOUPLER
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:20000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the HCPL2530 Rochester Electronics at chimicron.com. We have 20000 pieces of HCPL2530 in stock available now. Submit an inquiry for HCPL2530 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Number of Channels2
Voltage - Isolation2500Vrms
Current Transfer Ratio (Min)7% @ 16mA
Current Transfer Ratio (Max)50% @ 16mA
Turn On / Turn Off Time (Typ)450ns, 500ns
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)20V
Current - Output / Channel8mA
Voltage - Forward (Vf) (Typ)1.45V
Current - DC Forward (If) (Max)25 mA
Vce Saturation (Max)-
Operating Temperature-55°C ~ 100°C
Mounting TypeThrough Hole

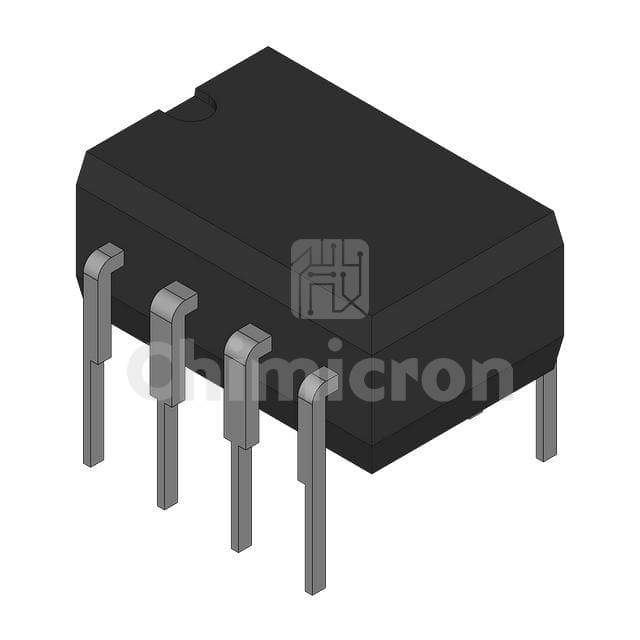

Package / Case8-DIP (0.300", 7.62mm)
Supplier Device Package8-DIP
