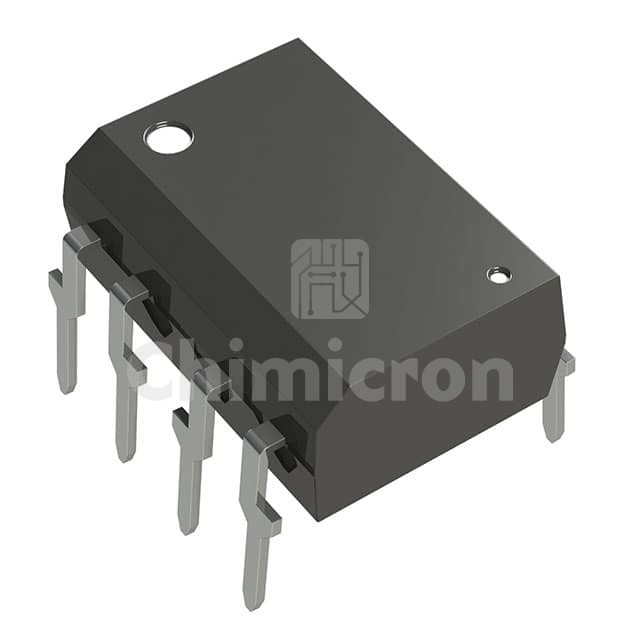

TLP759(D4,J,F)
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: PHOTOCOUPLER LOGIC 8DIP T/H
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:100000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TLP759(D4,J,F) Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 100000 pieces of TLP759(D4,J,F) in stock available now. Submit an inquiry for TLP759(D4,J,F) or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)20% @ 16mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)200ns, 300ns
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)20V
Current - Output / Channel8mA
Voltage - Forward (Vf) (Typ)1.65V
Current - DC Forward (If) (Max)25 mA
Vce Saturation (Max)-
Operating Temperature-55°C ~ 100°C
Mounting TypeThrough Hole
Package / Case8-DIP (0.300", 7.62mm)
Supplier Device Package8-DIP
