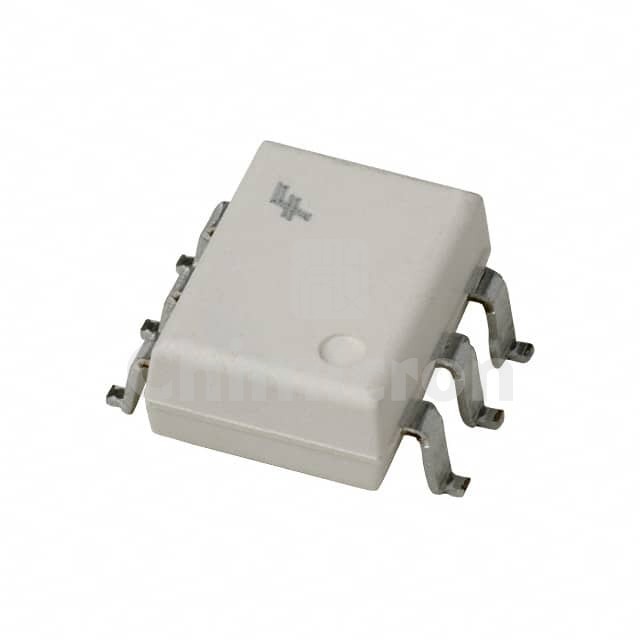

H11D3SR2M
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: OPTOISO 4.17KV TRANS W/BASE 6SMD
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:420000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the H11D3SR2M Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 420000 pieces of H11D3SR2M in stock available now. Submit an inquiry for H11D3SR2M or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Number of Channels1
Voltage - Isolation4170Vrms
Current Transfer Ratio (Min)20% @ 10mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)5µs, 5µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor with Base
Voltage - Output (Max)200V
Current - Output / Channel100mA
Voltage - Forward (Vf) (Typ)1.15V
Current - DC Forward (If) (Max)80 mA
Vce Saturation (Max)400mV
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SMD, Gull Wing
Supplier Device Package6-SMD
