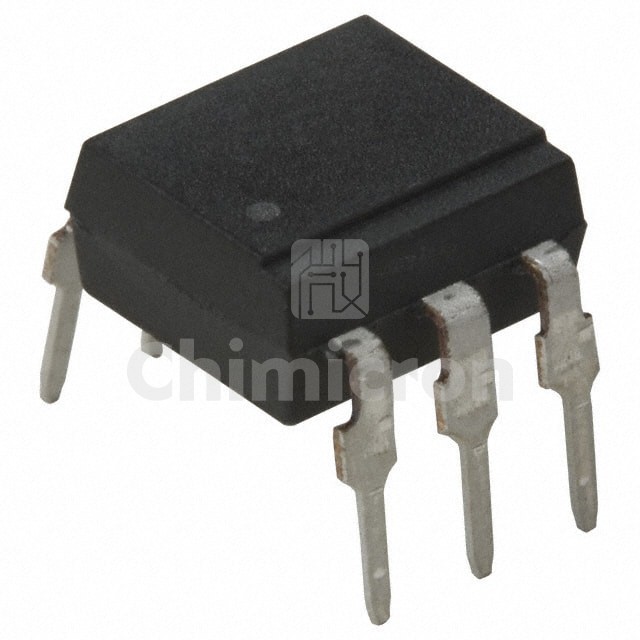

4N46
Manufacturer: Broadcom
Description: OPTOISO 3.75KV DARL W/BASE 6DIP
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 4N46 Broadcom at chimicron.com. We have 500 pieces of 4N46 in stock available now. Submit an inquiry for 4N46 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Number of Channels1
Voltage - Isolation3750Vrms
Current Transfer Ratio (Min)200% @ 10mA
Current Transfer Ratio (Max)1000% @ 10mA
Turn On / Turn Off Time (Typ)5µs, 150µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeDarlington with Base
Voltage - Output (Max)20V
Current - Output / Channel60mA
Voltage - Forward (Vf) (Typ)1.4V
Current - DC Forward (If) (Max)20 mA
Vce Saturation (Max)-
Operating Temperature-40°C ~ 85°C
Mounting TypeThrough Hole
Package / Case6-DIP (0.300", 7.62mm)
Supplier Device Package6-DIP
