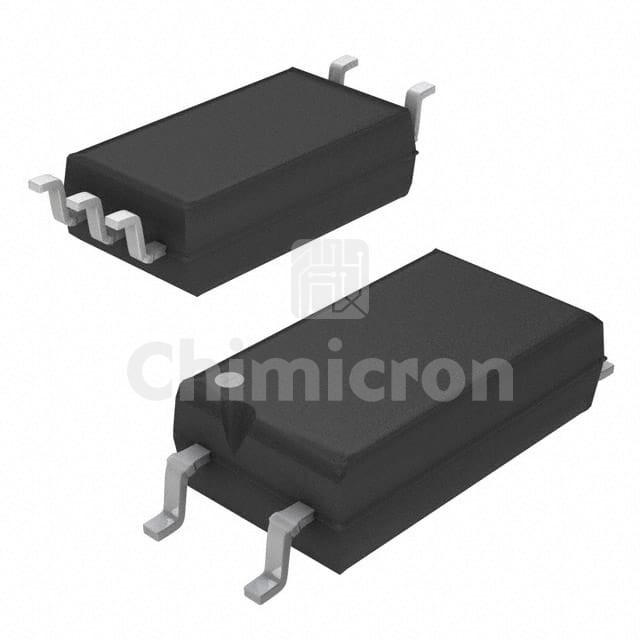

TCLT1108
Manufacturer: Vishay / Semiconductor - Opto Division
Description: OPTOISO 5KV TRANS W/BASE 6SOP
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:300000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TCLT1108 Vishay / Semiconductor - Opto Division at chimicron.com. We have 300000 pieces of TCLT1108 in stock available now. Submit an inquiry for TCLT1108 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)130% @ 5mA
Current Transfer Ratio (Max)260% @ 5mA
Turn On / Turn Off Time (Typ)6µs, 5µs
Rise / Fall Time (Typ)3µs, 4.7µs
Input TypeDC
Output TypeTransistor with Base
Voltage - Output (Max)80V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.25V
Current - DC Forward (If) (Max)60 mA
Vce Saturation (Max)300mV
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.295", 7.50mm Width), 5 Leads
Supplier Device Package6-SOP, 5 Pin
