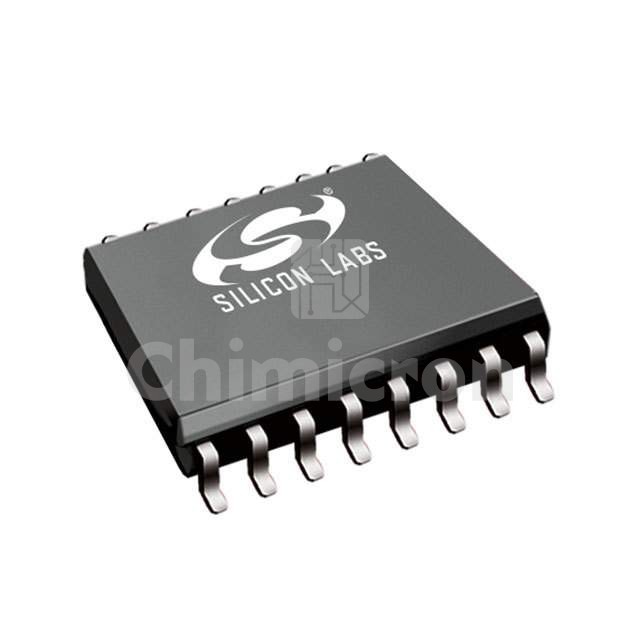

SI8234BB-D-ISR
Manufacturer: Silicon Labs
Description: DGTL ISO 2.5KV GATE DRVR 16SOIC
Category : Isolators
Family: Isolators - Gate Drivers
Series: Automotive, AEC-Q100
In Stock:100038
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SI8234BB-D-ISR Silicon Labs at chimicron.com. We have 100038 pieces of SI8234BB-D-ISR in stock available now. Submit an inquiry for SI8234BB-D-ISR or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q100
PackageTape & Reel (TR)
Part StatusActive
TechnologyCapacitive Coupling
Number of Channels2
Voltage - Isolation2500Vrms
Common Mode Transient Immunity (Min)20kV/µs
Propagation Delay tpLH / tpHL (Max)60ns, 60ns
Pulse Width Distortion (Max)5.6ns
Rise / Fall Time (Typ)12ns, 12ns (Max)
Current - Output High, Low2A, 4A
Current - Peak Output4A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply9.4V ~ 24V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-SOIC (0.295", 7.50mm Width)
Supplier Device Package16-SOIC
Approval AgencyCQC, CSA, UR, VDE
