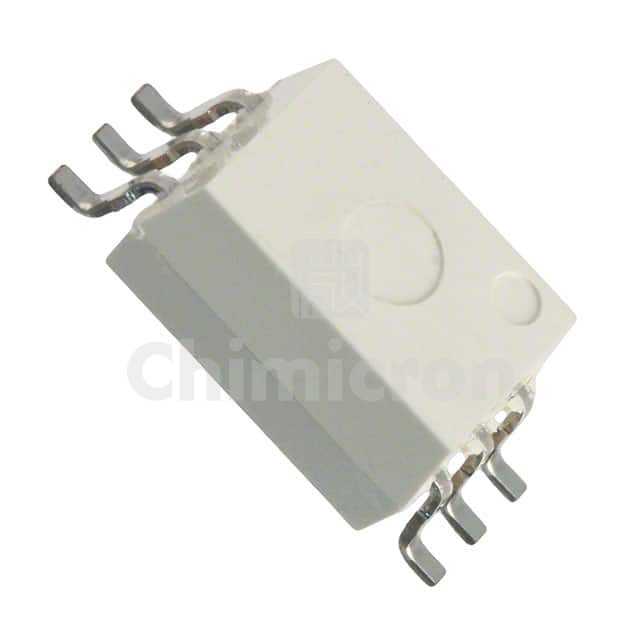

TLP701(TP,F)
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: OPTOISO 5KV GATE DRIVER 6SDIP GW
Category : Isolators
Family: Isolators - Gate Drivers
Series: -
In Stock:53760
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TLP701(TP,F) Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 53760 pieces of TLP701(TP,F) in stock available now. Submit an inquiry for TLP701(TP,F) or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusNot For New Designs
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)10kV/µs
Propagation Delay tpLH / tpHL (Max)700ns, 700ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)50ns, 50ns
Current - Output High, Low400mA, 400mA
Current - Peak Output600mA
Voltage - Forward (Vf) (Typ)1.55V
Current - DC Forward (If) (Max)20 mA
Voltage - Output Supply10V ~ 30V
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.268", 6.80mm Width)
Supplier Device Package6-SDIP Gull Wing
Approval AgencycUL, UL
