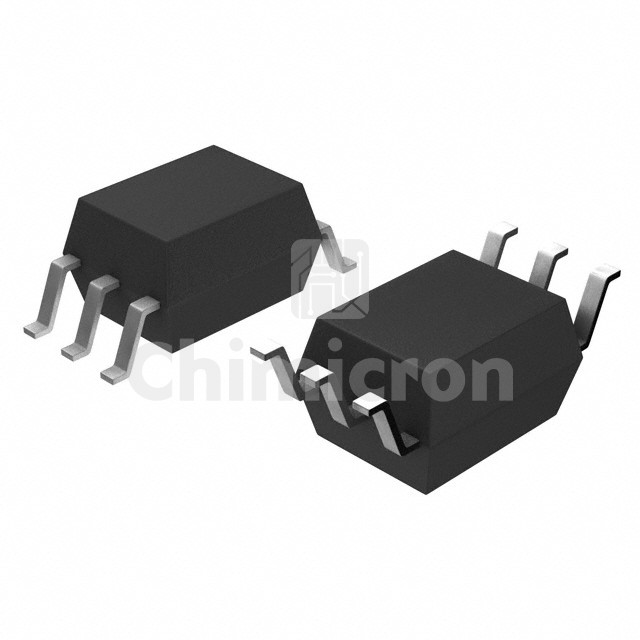

IS314P
Manufacturer: Isocom Components
Description: 6 PIN IGBT GATE DRIVEWIDE BODY H
Category : Isolators
Family: Isolators - Gate Drivers
Series: -
In Stock:142439
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IS314P Isocom Components at chimicron.com. We have 142439 pieces of IS314P in stock available now. Submit an inquiry for IS314P or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)20kV/µs
Propagation Delay tpLH / tpHL (Max)200ns, 200ns
Pulse Width Distortion (Max)70ns
Rise / Fall Time (Typ)35ns, 35ns
Current - Output High, Low800mA, 800mA
Current - Peak Output1A
Voltage - Forward (Vf) (Typ)1.37V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply10V ~ 30V
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.268", 6.80mm Width)
Supplier Device Package6-SO Stretched
Approval Agency-
