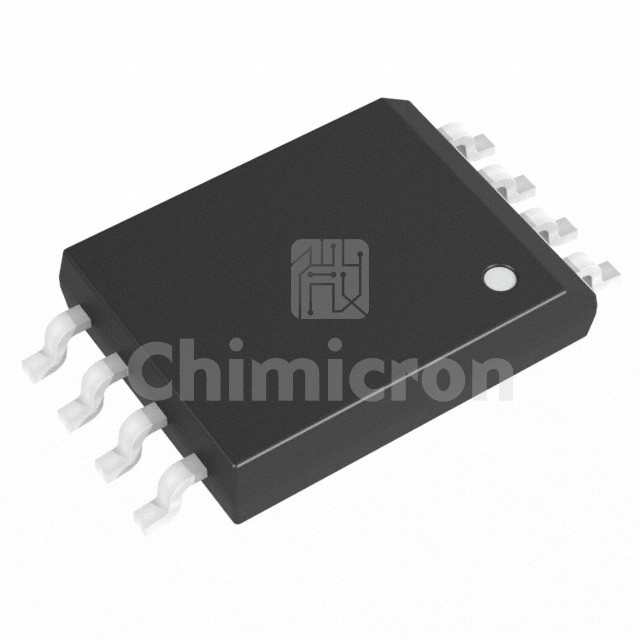

ADUM4121BRIZ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: DGTL ISO 5KV 1CH GATE DRVR 8SOIC
Category : Isolators
Family: Isolators - Gate Drivers
Series: iCoupler®
In Stock:47450
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADUM4121BRIZ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 47450 pieces of ADUM4121BRIZ in stock available now. Submit an inquiry for ADUM4121BRIZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesiCoupler®
PackageTube
Part StatusActive
TechnologyMagnetic Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)150kV/µs
Propagation Delay tpLH / tpHL (Max)42ns, 53ns
Pulse Width Distortion (Max)13ns
Rise / Fall Time (Typ)18ns, 18ns
Current - Output High, Low-
Current - Peak Output2.3A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply7.5V ~ 35V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.295", 7.50mm Width)
Supplier Device Package8-SOIC-IC
Approval AgencyCSA, UR, VDE
