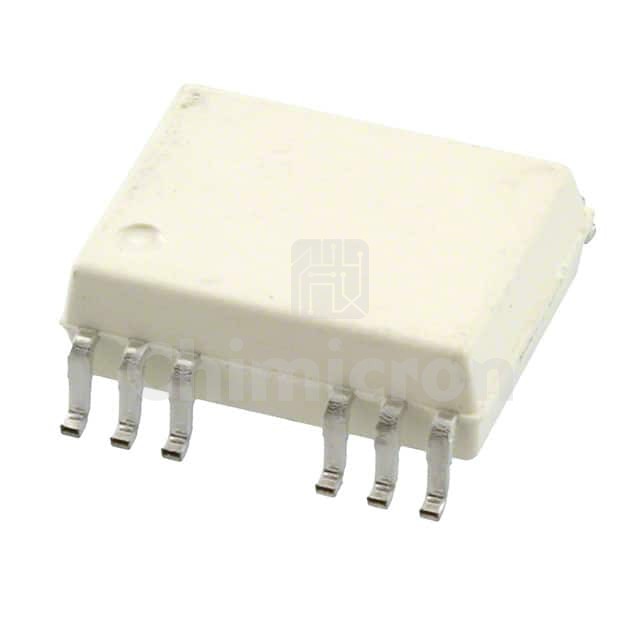

HCPL-314J-000E
Manufacturer: Broadcom
Description: OPTOISO 5KV 2CH GATE DRIVER 16SO
Category : Isolators
Family: Isolators - Gate Drivers
Series: -
In Stock:21802
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the HCPL-314J-000E Broadcom at chimicron.com. We have 21802 pieces of HCPL-314J-000E in stock available now. Submit an inquiry for HCPL-314J-000E or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
TechnologyOptical Coupling
Number of Channels2
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)25kV/µs
Propagation Delay tpLH / tpHL (Max)700ns, 700ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)50ns, 50ns
Current - Output High, Low500mA, -
Current - Peak Output600mA
Voltage - Forward (Vf) (Typ)1.5V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply10V ~ 30V
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case16-SOIC (0.295", 7.50mm Width)
Supplier Device Package16-SO
Approval AgencyCSA, IEC/EN/DIN, UR
