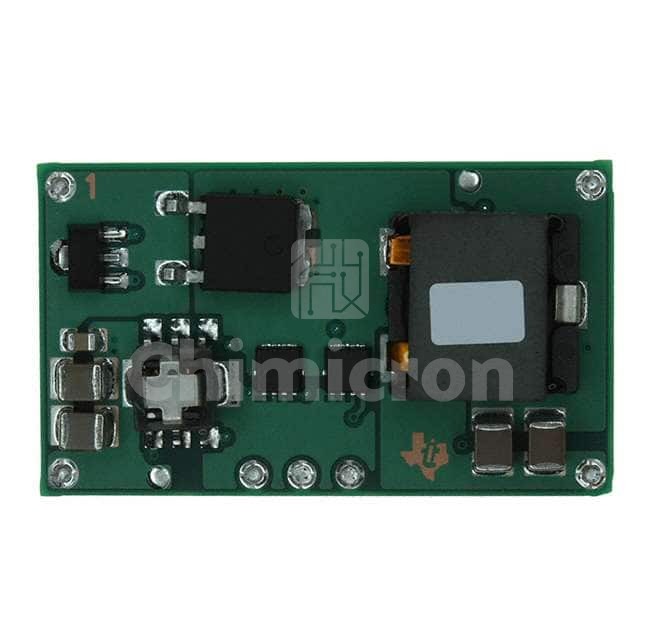

PTN78020AAH
Manufacturer: Texas
Description: DC DC CONVERTER -15 TO -3V
Category : Power Supplies - Board Mount
Family: DC DC Converters
Series: PTN78020A (25W)
In Stock:15000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PTN78020AAH Texas at chimicron.com. We have 15000 pieces of PTN78020AAH in stock available now. Submit an inquiry for PTN78020AAH or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPTN78020A (25W)
PackageTray
Part StatusActive
TypeNon-Isolated PoL Module
Number of Outputs1
Voltage - Input (Min)9V
Voltage - Input (Max)29V
Voltage - Output 1-15 ~ -3V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)4A
Power (Watts)-
Voltage - Isolation-
ApplicationsITE (Commercial)
FeaturesOCP, OTP, UVLO
Operating Temperature-40°C ~ 85°C
Efficiency87%
Mounting TypeThrough Hole
Package / Case7-DIP Module
Size / Dimension1.50" L x 0.87" W x 0.36" H (38.1mm x 22.1mm x 9.1mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
