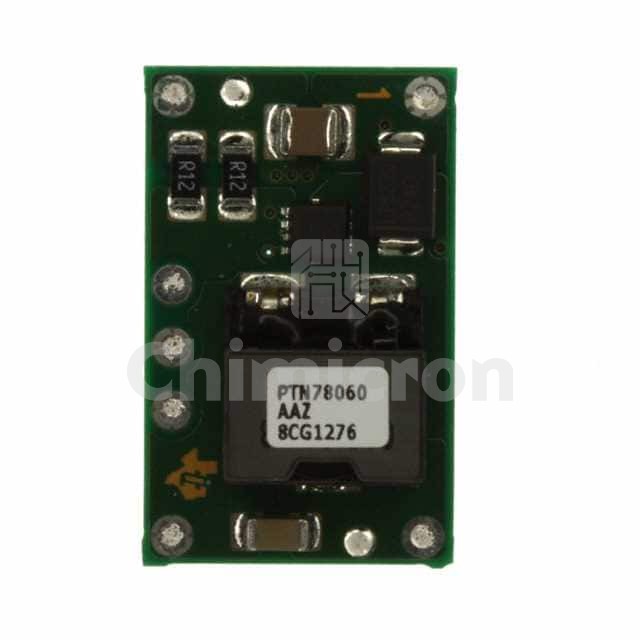

PTN78060AAZ
Manufacturer: Texas
Description: DC DC CONVERTER -15 TO -3V
Category : Power Supplies - Board Mount
Family: DC DC Converters
Series: PTN78060A (15W)
In Stock:5000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PTN78060AAZ Texas at chimicron.com. We have 5000 pieces of PTN78060AAZ in stock available now. Submit an inquiry for PTN78060AAZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPTN78060A (15W)
PackageTray
Part StatusActive
TypeNon-Isolated PoL Module
Number of Outputs1
Voltage - Input (Min)9V
Voltage - Input (Max)28.7V
Voltage - Output 1-15 ~ -3V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Current - Output (Max)3A
Power (Watts)-
Voltage - Isolation-
ApplicationsITE (Commercial)
FeaturesOCP, OTP, UVLO
Operating Temperature-40°C ~ 85°C
Efficiency88%
Mounting TypeSurface Mount
Package / Case7-SMD Module
Size / Dimension1.00" L x 0.62" W x 0.38" H (25.4mm x 15.7mm x 9.7mm)
Supplier Device Package-
Control Features-
Approval Agency-
Standard Number-
