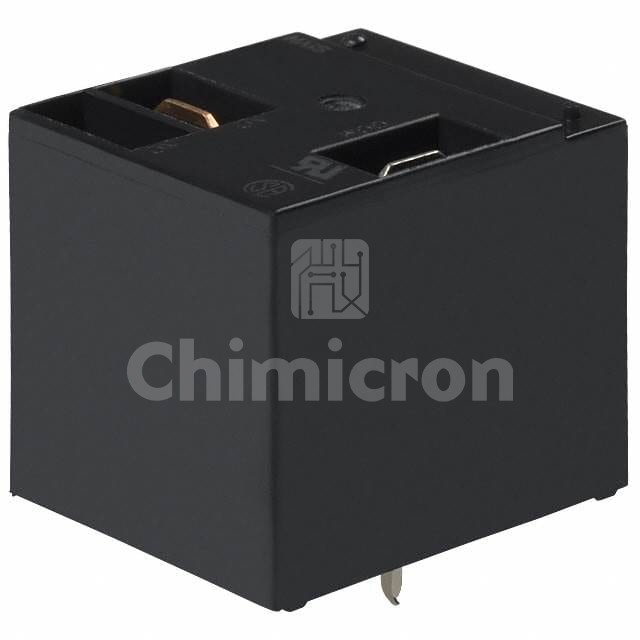

JTN1AG-TMP-F-DC24V
Manufacturer: Panasonic
Description: RELAY GEN PURPOSE SPST 30A 24V
Category : Relays
Family: Power Relays, Over 2 Amps
Series: JT-N
In Stock:1000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the JTN1AG-TMP-F-DC24V Panasonic at chimicron.com. We have 1000 pieces of JTN1AG-TMP-F-DC24V in stock available now. Submit an inquiry for JTN1AG-TMP-F-DC24V or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesJT-N
PackageBulk
Part StatusObsolete
Mounting TypeThrough Hole
Coil Voltage24VDC
Contact FormSPST-NO (1 Form A)
Contact Rating (Current)30 A
Switching Voltage277VAC - Max
Coil Current33.3 mA
Coil TypeNon Latching
Features-
Termination StylePC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating-
Coil InsulationClass F
Must Operate Voltage18 VDC
Must Release Voltage2.4 VDC
Operate Time20 ms
Release Time10 ms
Operating Temperature-55°C ~ 85°C
Contact MaterialSilver Tin Oxide (AgSnO)
Relay TypeGeneral Purpose
