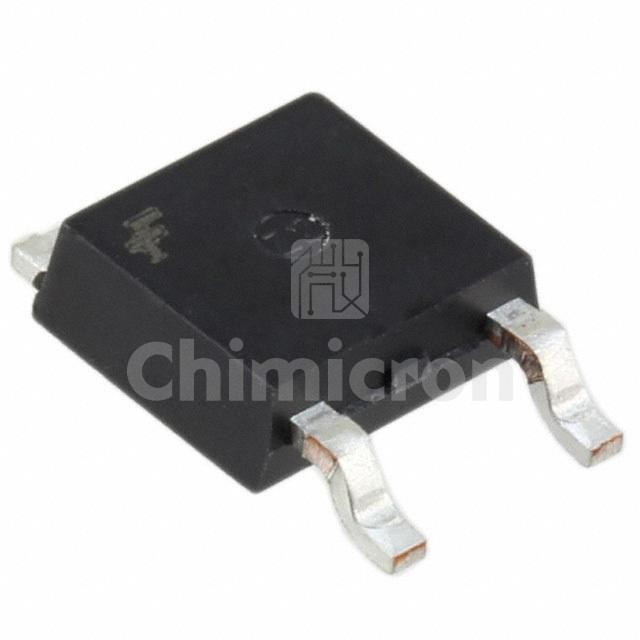

FQD10N20LTF
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 200V 7.6A TO252
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: QFET®
In Stock:250000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FQD10N20LTF Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 250000 pieces of FQD10N20LTF in stock available now. Submit an inquiry for FQD10N20LTF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesQFET®
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)200 V
Current - Continuous Drain (Id) @ 25°C7.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)5V, 10V
Rds On (Max) @ Id, Vgs360mOhm @ 3.8A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs17 nC @ 5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds830 pF @ 25 V
FET Feature-
Power Dissipation (Max)2.5W (Ta), 51W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-252, (D-Pak)
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
