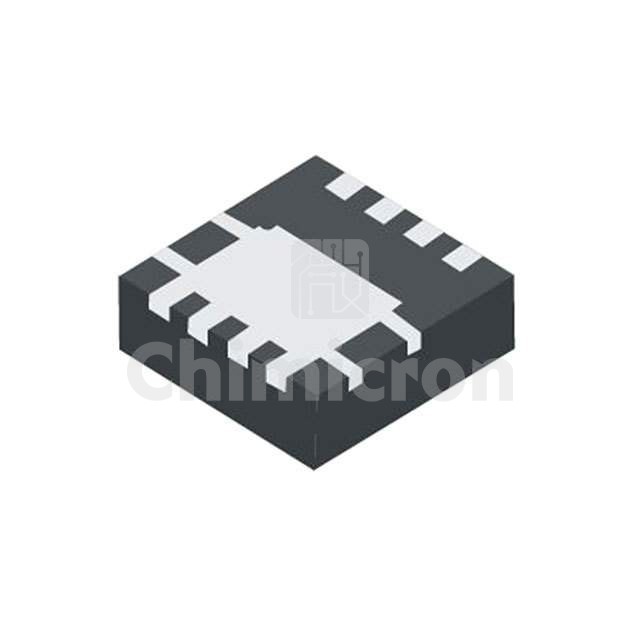

DMG7401SFGQ-7
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET P-CH 30V 9.8A PWRDI3333-8
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:17352
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DMG7401SFGQ-7 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 17352 pieces of DMG7401SFGQ-7 in stock available now. Submit an inquiry for DMG7401SFGQ-7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C9.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 20V
Rds On (Max) @ Id, Vgs11mOhm @ 12A, 20V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs58 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds2987 pF @ 15 V
FET Feature-
Power Dissipation (Max)940mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerDI3333-8
Package / Case8-PowerVDFN
