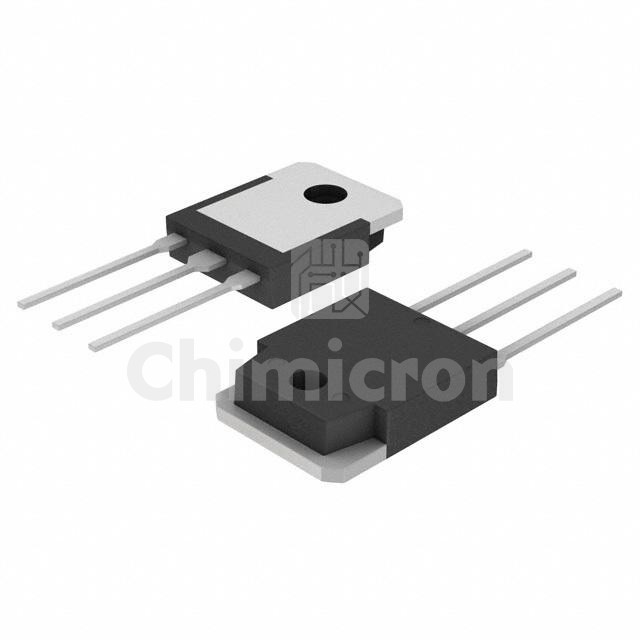

SSH70N10A
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 100V 70A TO3PN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:2000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SSH70N10A Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 2000 pieces of SSH70N10A in stock available now. Submit an inquiry for SSH70N10A or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs23mOhm @ 35A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs195 nC @ 10 V
Vgs (Max)-
Input Capacitance (Ciss) (Max) @ Vds4870 pF @ 25 V
FET Feature-
Power Dissipation (Max)300W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-3PN
Package / CaseTO-3P-3, SC-65-3
