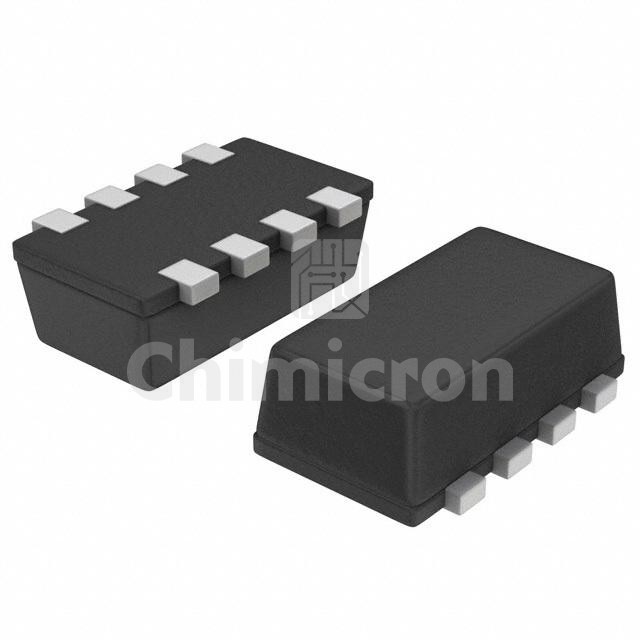

NTHS2101PT1G
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET P-CH 8V 5.4A CHIPFET
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:600000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NTHS2101PT1G Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 600000 pieces of NTHS2101PT1G in stock available now. Submit an inquiry for NTHS2101PT1G or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)8 V
Current - Continuous Drain (Id) @ 25°C5.4A (Tj)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs25mOhm @ 5.4A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs30 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds2400 pF @ 6.4 V
FET Feature-
Power Dissipation (Max)1.3W (Ta)
Operating Temperature-
Mounting TypeSurface Mount
Supplier Device PackageChipFET™
Package / Case8-SMD, Flat Lead
