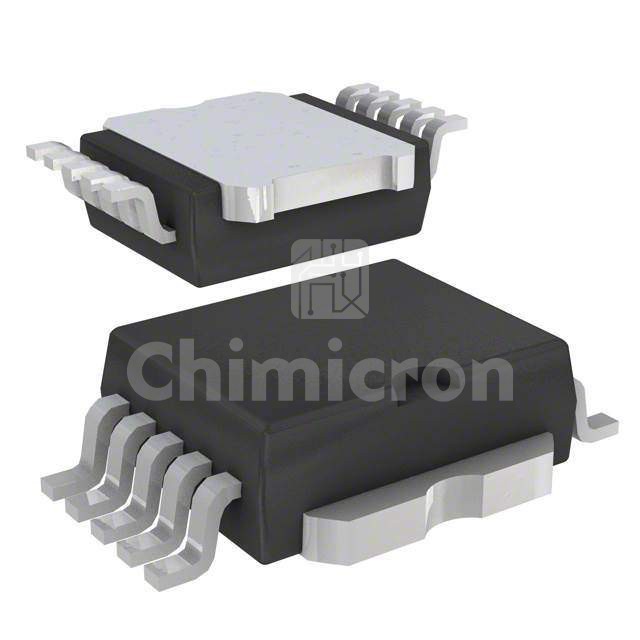

STV160NF02LT4
Manufacturer: STMicroelectronics
Description: MOSFET N-CH 20V 160A 10POWERSO
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: STripFET™ II
In Stock:6000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STV160NF02LT4 STMicroelectronics at chimicron.com. We have 6000 pieces of STV160NF02LT4 in stock available now. Submit an inquiry for STV160NF02LT4 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSTripFET™ II
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C160A (Tc)
Drive Voltage (Max Rds On, Min Rds On)5V, 10V
Rds On (Max) @ Id, Vgs2.5mOhm @ 80A, 10V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs160 nC @ 10 V
Vgs (Max)±15V
Input Capacitance (Ciss) (Max) @ Vds4800 pF @ 15 V
FET Feature-
Power Dissipation (Max)210W (Tc)
Operating Temperature175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package10-PowerSO
Package / CasePowerSO-10 Exposed Bottom Pad
