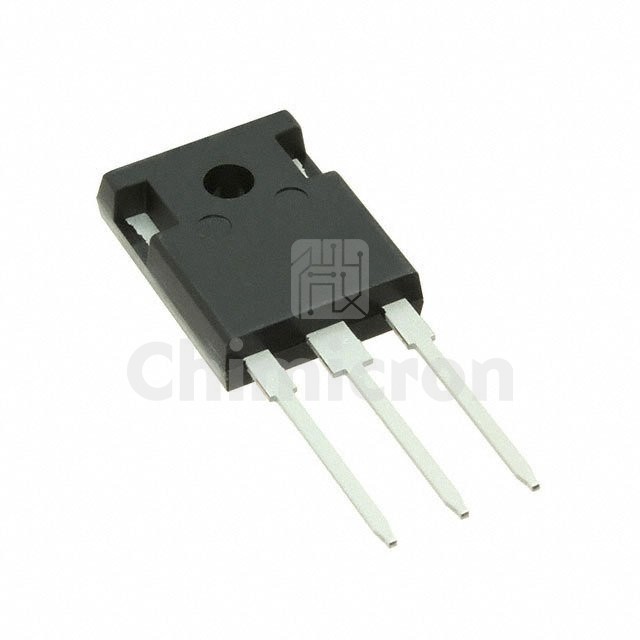

SPW20N60S5FKSA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 600V 20A TO247-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: CoolMOS™
In Stock:1500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SPW20N60S5FKSA1 IR (Infineon Technologies) at chimicron.com. We have 1500 pieces of SPW20N60S5FKSA1 in stock available now. Submit an inquiry for SPW20N60S5FKSA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesCoolMOS™
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs190mOhm @ 13A, 10V
Vgs(th) (Max) @ Id5.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs103 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3000 pF @ 25 V
FET Feature-
Power Dissipation (Max)208W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePG-TO247-3
Package / CaseTO-247-3
