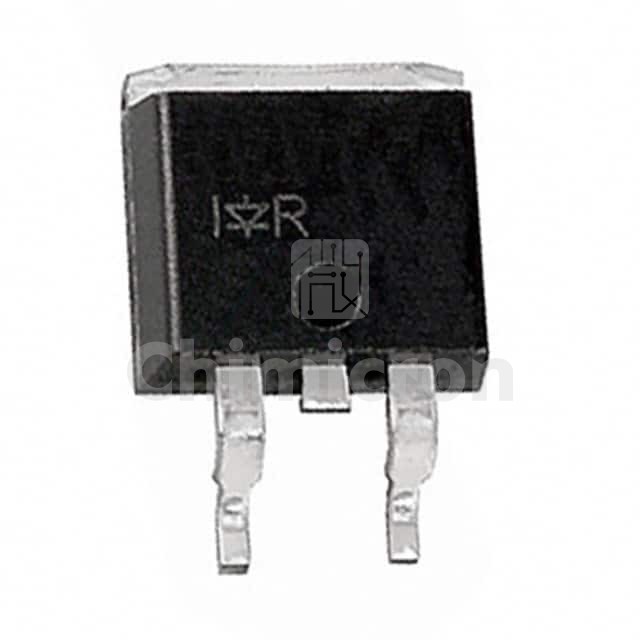

IRL3303STRL
IRL3303STRL

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 30V 38A D2PAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:2000000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRL3303STRL IR (Infineon Technologies) at chimicron.com. We have 2000000 pieces of IRL3303STRL in stock available now. Submit an inquiry for IRL3303STRL or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C38A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs26mOhm @ 20A, 10V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs26 nC @ 4.5 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds870 pF @ 25 V
FET Feature-
Power Dissipation (Max)3.8W (Ta), 68W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD2PAK
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
