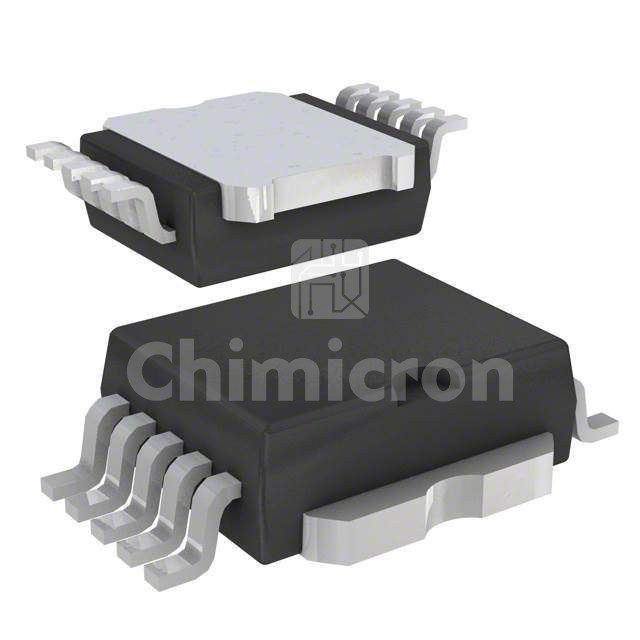

STV240N75F3
Manufacturer: STMicroelectronics
Description: MOSFET N-CH 75V 240A 10POWERSO
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: STripFET™ III
In Stock:10800
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STV240N75F3 STMicroelectronics at chimicron.com. We have 10800 pieces of STV240N75F3 in stock available now. Submit an inquiry for STV240N75F3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSTripFET™ III
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)75 V
Current - Continuous Drain (Id) @ 25°C240A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs2.6mOhm @ 120A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs100 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6800 pF @ 25 V
FET Feature-
Power Dissipation (Max)300W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package10-PowerSO
Package / CasePowerSO-10 Exposed Bottom Pad
