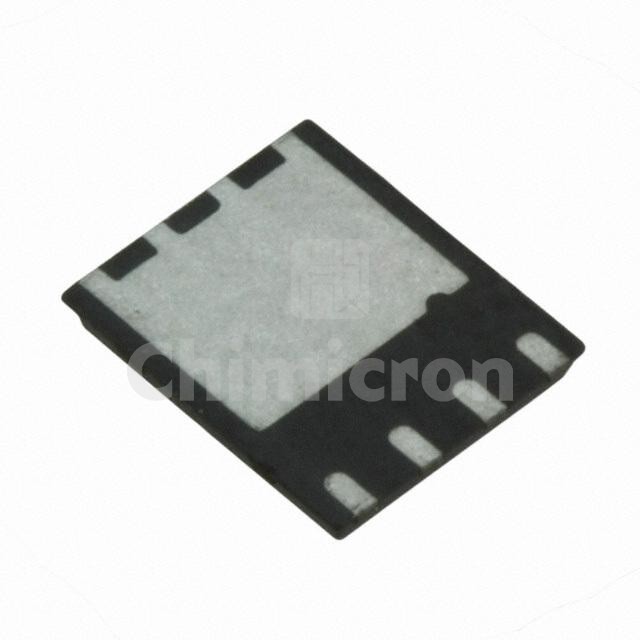

IRLH5036TRPBF
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 60V 20A/100A 8PQFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:35000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRLH5036TRPBF IR (Infineon Technologies) at chimicron.com. We have 35000 pieces of IRLH5036TRPBF in stock available now. Submit an inquiry for IRLH5036TRPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C20A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs4.4mOhm @ 50A, 10V
Vgs(th) (Max) @ Id2.5V @ 150µA
Gate Charge (Qg) (Max) @ Vgs90 nC @ 10 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds5360 pF @ 25 V
FET Feature-
Power Dissipation (Max)3.6W (Ta), 160W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-PQFN (5x6)
Package / Case8-PowerVDFN
