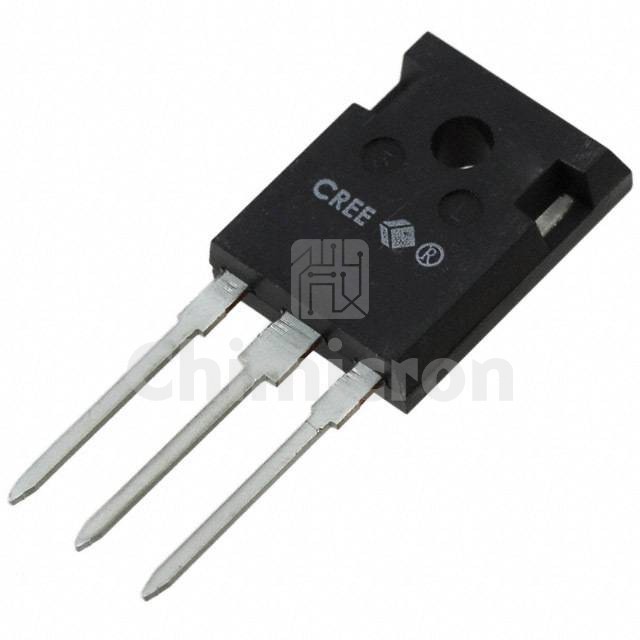

CMF20120D
Manufacturer: Wolfspeed - a Cree company
Description: SICFET N-CH 1200V 42A TO247-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Z-FET™
In Stock:1000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CMF20120D Wolfspeed - a Cree company at chimicron.com. We have 1000 pieces of CMF20120D in stock available now. Submit an inquiry for CMF20120D or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesZ-FET™
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C42A (Tc)
Drive Voltage (Max Rds On, Min Rds On)20V
Rds On (Max) @ Id, Vgs110mOhm @ 20A, 20V
Vgs(th) (Max) @ Id4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs90.8 nC @ 20 V
Vgs (Max)+25V, -5V
Input Capacitance (Ciss) (Max) @ Vds1915 pF @ 800 V
FET Feature-
Power Dissipation (Max)215W (Tc)
Operating Temperature-55°C ~ 135°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-3
Package / CaseTO-247-3
