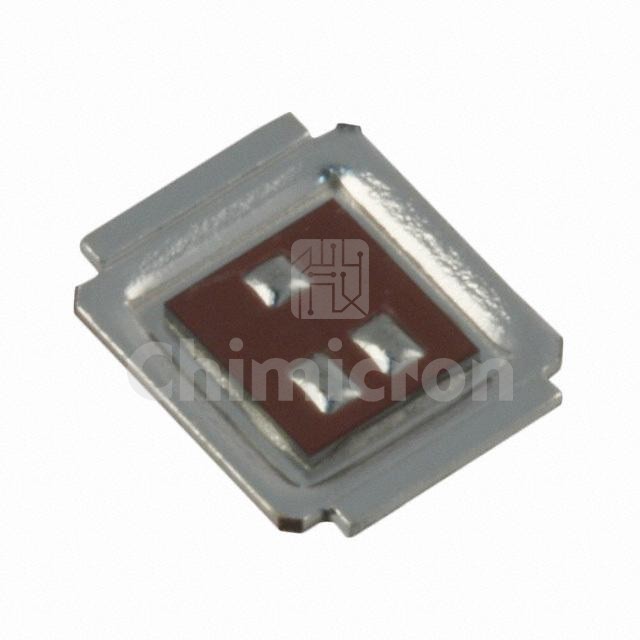

IRF6603TR1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 30V 27A DIRECTFET
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:22500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRF6603TR1 IR (Infineon Technologies) at chimicron.com. We have 22500 pieces of IRF6603TR1 in stock available now. Submit an inquiry for IRF6603TR1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C27A (Ta), 92A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.4mOhm @ 25A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs72 nC @ 4.5 V
Vgs (Max)+20V, -12V
Input Capacitance (Ciss) (Max) @ Vds6590 pF @ 15 V
FET Feature-
Power Dissipation (Max)3.6W (Ta), 42W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDIRECTFET™ MT
Package / CaseDirectFET™ Isometric MT
