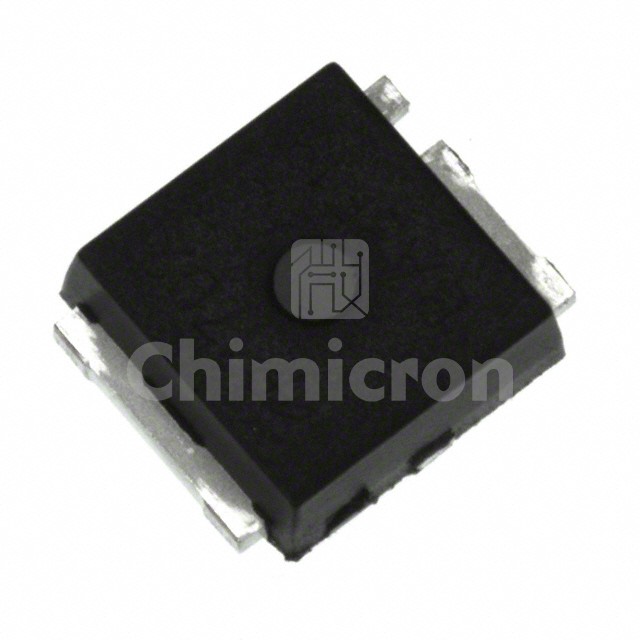

AOL1242
Manufacturer: Alpha and Omega Semiconductor, Inc.
Description: MOSFET N-CH 40V 14A/69A ULTRASO8
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:84950
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AOL1242 Alpha and Omega Semiconductor, Inc. at chimicron.com. We have 84950 pieces of AOL1242 in stock available now. Submit an inquiry for AOL1242 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C14A (Ta), 69A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs5.2mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs23 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1620 pF @ 20 V
FET Feature-
Power Dissipation (Max)2.1W (Ta), 68W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageUltraSO-8™
Package / Case3-PowerSMD, Flat Leads
