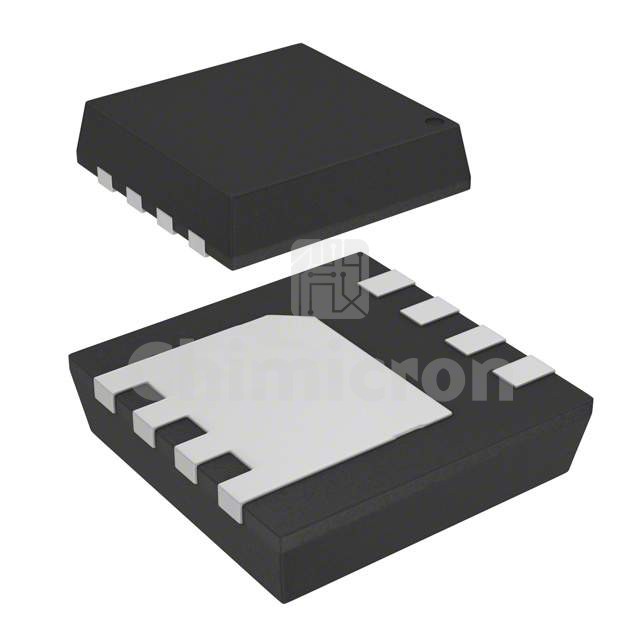

AON7520
Manufacturer: Alpha and Omega Semiconductor, Inc.
Description: MOSFET N-CH 30V 48A/50A 8DFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: AlphaMOS
In Stock:900000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AON7520 Alpha and Omega Semiconductor, Inc. at chimicron.com. We have 900000 pieces of AON7520 in stock available now. Submit an inquiry for AON7520 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAlphaMOS
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C48A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 10V
Rds On (Max) @ Id, Vgs1.8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs105 nC @ 10 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds4175 pF @ 15 V
FET Feature-
Power Dissipation (Max)6.2W (Ta), 83.3W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN-EP (3.3x3.3)
Package / Case8-PowerWDFN
