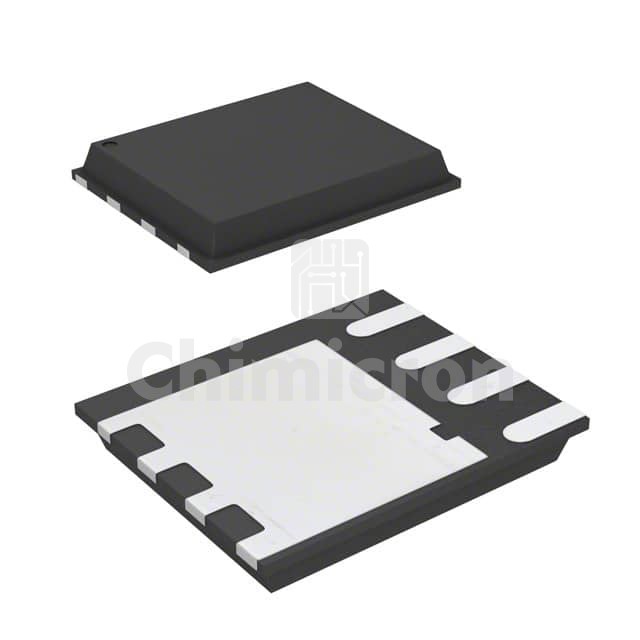

STL150N3LLH5
Manufacturer: STMicroelectronics
Description: MOSFET N-CH 30V 195A POWERFLAT
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: STripFET™ V
In Stock:2460000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STL150N3LLH5 STMicroelectronics at chimicron.com. We have 2460000 pieces of STL150N3LLH5 in stock available now. Submit an inquiry for STL150N3LLH5 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSTripFET™ V
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C195A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.75mOhm @ 17.5A, 10V
Vgs(th) (Max) @ Id2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs40 nC @ 4.5 V
Vgs (Max)±22V
Input Capacitance (Ciss) (Max) @ Vds5800 pF @ 25 V
FET Feature-
Power Dissipation (Max)114W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerFlat™ (5x6)
Package / Case8-PowerVDFN
