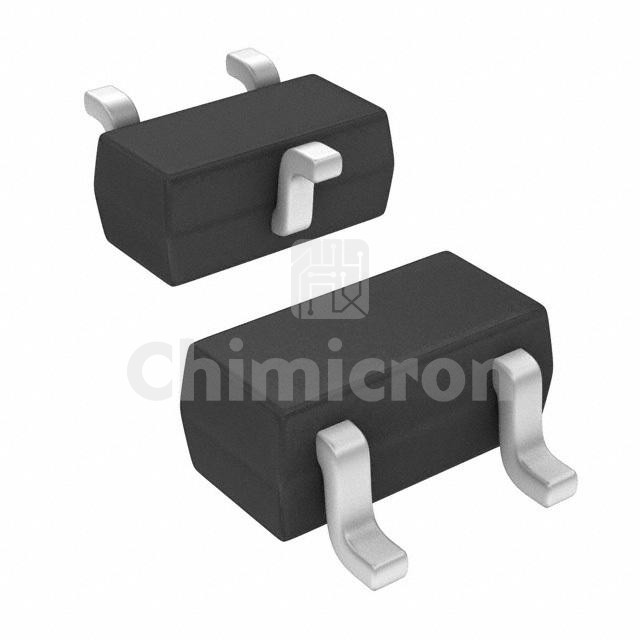

BSA223SP
Manufacturer: IR (Infineon Technologies)
Description: MOSFET P-CH 20V 390MA SC75
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: OptiMOS™
In Stock:500000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BSA223SP IR (Infineon Technologies) at chimicron.com. We have 500000 pieces of BSA223SP in stock available now. Submit an inquiry for BSA223SP or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusDiscontinued at Digi-Key
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C390mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs1.2Ohm @ 390mA, 4.5V
Vgs(th) (Max) @ Id1.2V @ 1.5µA
Gate Charge (Qg) (Max) @ Vgs0.62 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds56 pF @ 15 V
FET Feature-
Power Dissipation (Max)250mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-SC-75
Package / CaseSC-75, SOT-416
