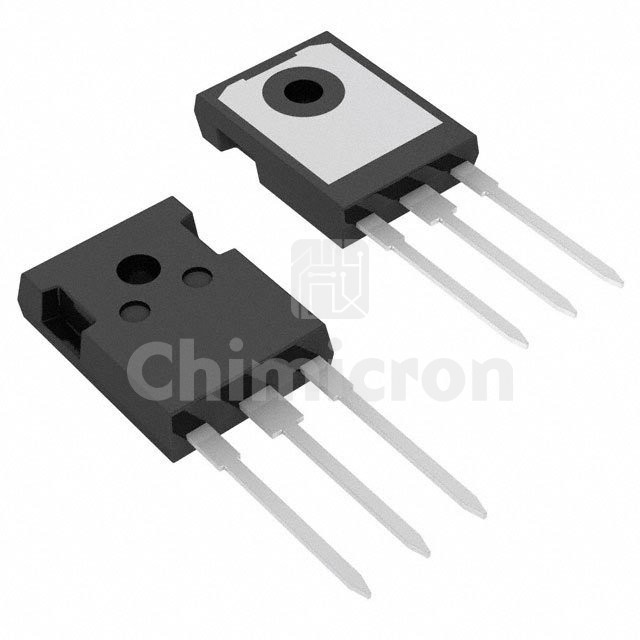

IXTH75N15
Manufacturer: Wickmann / Littelfuse
Description: MOSFET N-CH 150V 75A TO247
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:100000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IXTH75N15 Wickmann / Littelfuse at chimicron.com. We have 100000 pieces of IXTH75N15 in stock available now. Submit an inquiry for IXTH75N15 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)150 V
Current - Continuous Drain (Id) @ 25°C75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs23mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs210 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5400 pF @ 25 V
FET Feature-
Power Dissipation (Max)330W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247 (IXTH)
Package / CaseTO-247-3
