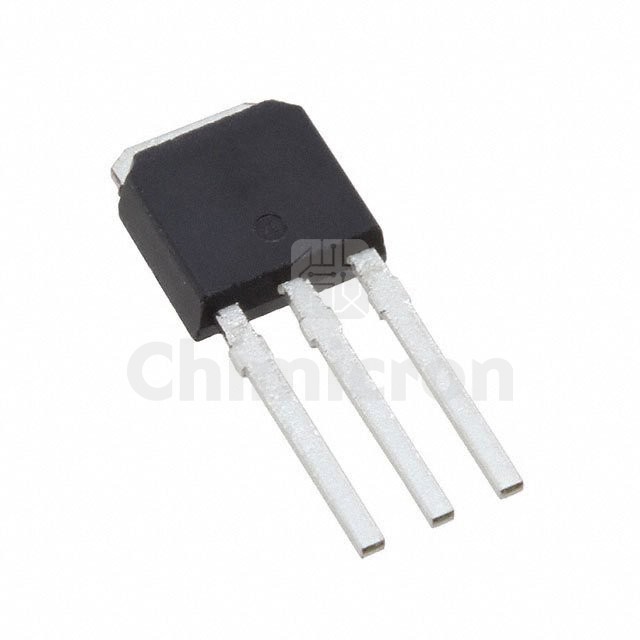

IRLU9343
Manufacturer: IR (Infineon Technologies)
Description: MOSFET P-CH 55V 20A I-PAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:2500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRLU9343 IR (Infineon Technologies) at chimicron.com. We have 2500 pieces of IRLU9343 in stock available now. Submit an inquiry for IRLU9343 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTube
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)55 V
Current - Continuous Drain (Id) @ 25°C20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs105mOhm @ 3.4A, 10V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs47 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds660 pF @ 50 V
FET Feature-
Power Dissipation (Max)79W (Tc)
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageI-PAK
Package / CaseTO-251-3 Short Leads, IPak, TO-251AA
