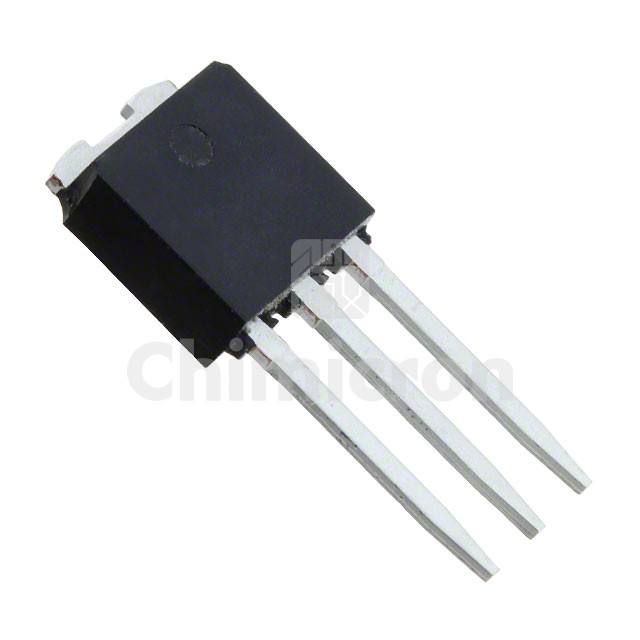

STD50N03L-1
Manufacturer: STMicroelectronics
Description: MOSFET N-CH 30V 40A IPAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: STripFET™ III
In Stock:10000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STD50N03L-1 STMicroelectronics at chimicron.com. We have 10000 pieces of STD50N03L-1 in stock available now. Submit an inquiry for STD50N03L-1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSTripFET™ III
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)5V, 10V
Rds On (Max) @ Id, Vgs10.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs14 nC @ 5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1434 pF @ 25 V
FET Feature-
Power Dissipation (Max)60W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageI-PAK
Package / CaseTO-251-3 Short Leads, IPak, TO-251AA
