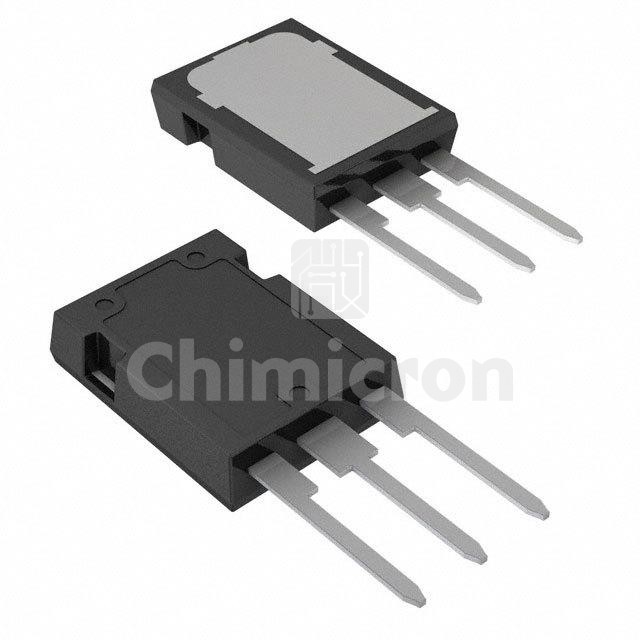

STY30NK90Z
Manufacturer: STMicroelectronics
Description: MOSFET N-CH 900V 26A MAX247
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: SuperMESH™
In Stock:3000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STY30NK90Z STMicroelectronics at chimicron.com. We have 3000 pieces of STY30NK90Z in stock available now. Submit an inquiry for STY30NK90Z or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSuperMESH™
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)900 V
Current - Continuous Drain (Id) @ 25°C26A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs260mOhm @ 14A, 10V
Vgs(th) (Max) @ Id4.5V @ 150µA
Gate Charge (Qg) (Max) @ Vgs490 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds12000 pF @ 25 V
FET Feature-
Power Dissipation (Max)450W (Tc)
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageMAX247™
Package / CaseTO-247-3
