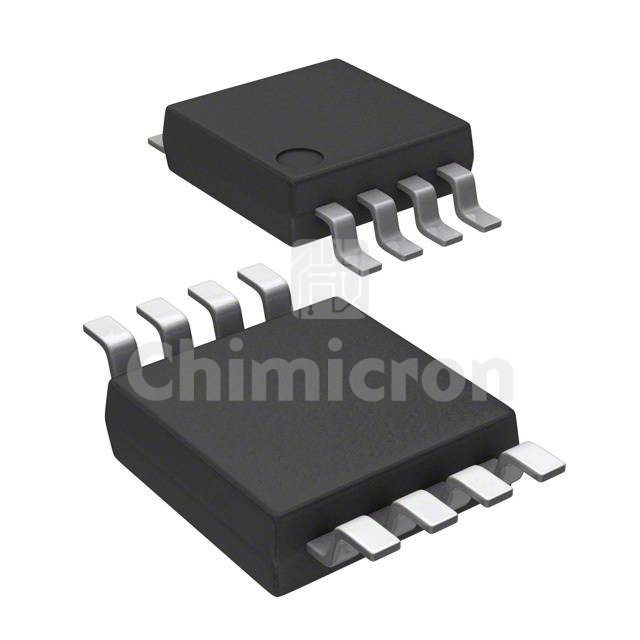

NTTS2P03R2G
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET P-CH 30V 2.1A MICRO8
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:23555
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NTTS2P03R2G Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 23555 pieces of NTTS2P03R2G in stock available now. Submit an inquiry for NTTS2P03R2G or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C2.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs85mOhm @ 2.48A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs22 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds500 pF @ 24 V
FET Feature-
Power Dissipation (Max)600mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageMicro8™
Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
