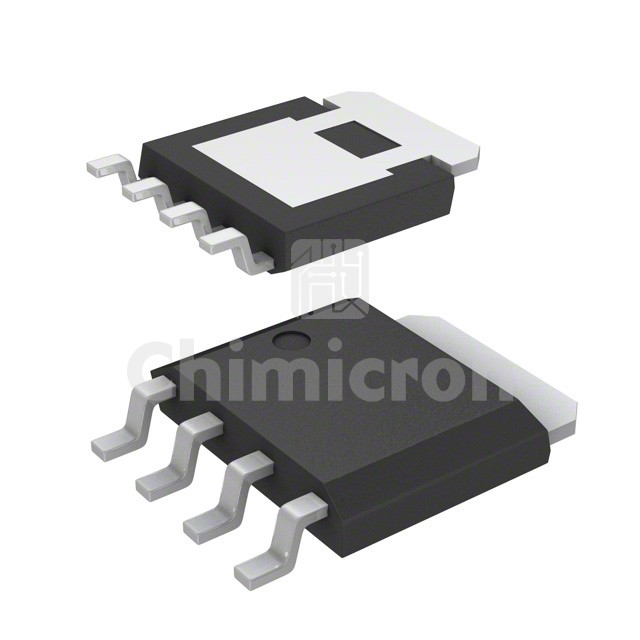

HAT2096H-EL-E
Manufacturer: Renesas Electronics America
Description: MOSFET N-CH 30V 40A LFPAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:9212
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the HAT2096H-EL-E Renesas Electronics America at chimicron.com. We have 9212 pieces of HAT2096H-EL-E in stock available now. Submit an inquiry for HAT2096H-EL-E or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C40A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs5.3mOhm @ 20A, 10V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs40 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2200 pF @ 10 V
FET Feature-
Power Dissipation (Max)20W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK
Package / CaseSC-100, SOT-669
