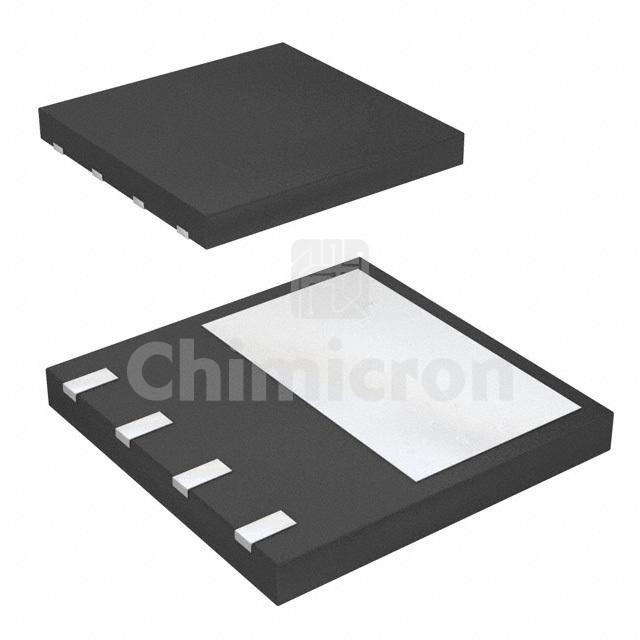

STL23NM60ND
Manufacturer: STMicroelectronics
Description: MOSFET N-CH 600V 19.5A POWERFLAT
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: FDmesh™ II
In Stock:6300
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STL23NM60ND STMicroelectronics at chimicron.com. We have 6300 pieces of STL23NM60ND in stock available now. Submit an inquiry for STL23NM60ND or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesFDmesh™ II
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C19.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs180mOhm @ 10A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs70 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds2050 pF @ 50 V
FET Feature-
Power Dissipation (Max)3W (Ta), 150W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerFlat™ (8x8) HV
Package / Case8-PowerVDFN
