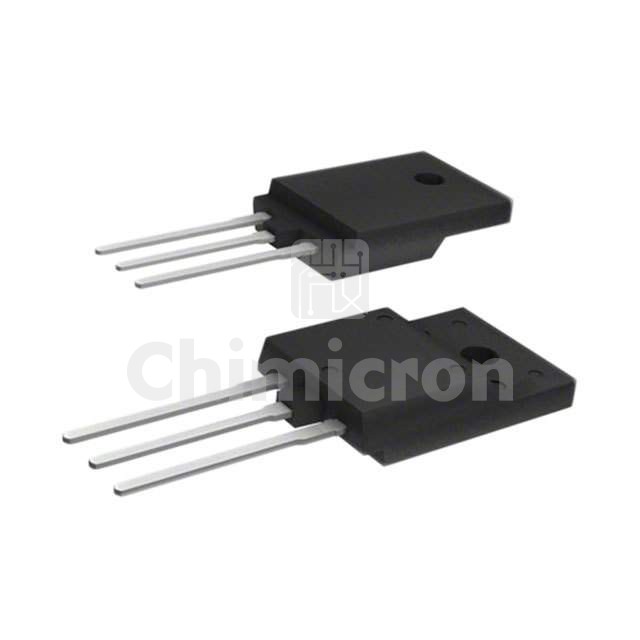

IRLI3803
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 30V 76A TO220AB FP
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRLI3803 IR (Infineon Technologies) at chimicron.com. We have 500 pieces of IRLI3803 in stock available now. Submit an inquiry for IRLI3803 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C76A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs6mOhm @ 40A, 10V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs140 nC @ 4.5 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds5000 pF @ 25 V
FET Feature-
Power Dissipation (Max)63W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220AB Full-Pak
Package / CaseTO-220-3 Full Pack
