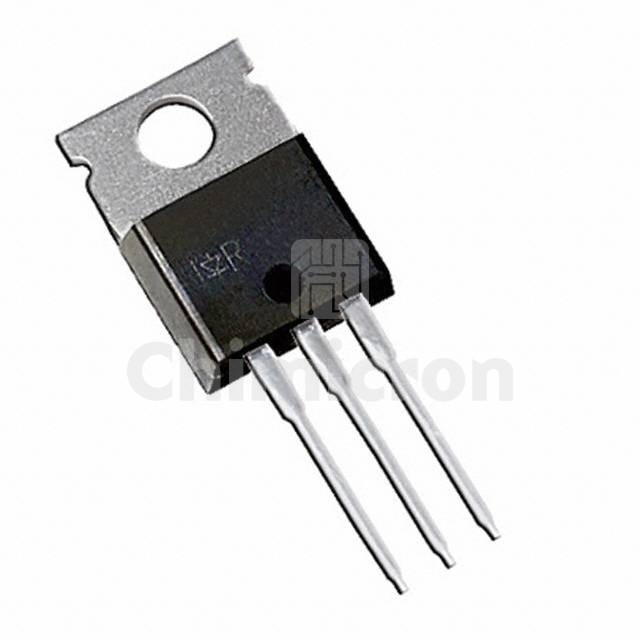

IRL3803
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 30V 140A TO220AB
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:5000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRL3803 IR (Infineon Technologies) at chimicron.com. We have 5000 pieces of IRL3803 in stock available now. Submit an inquiry for IRL3803 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C140A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs6mOhm @ 71A, 10V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs140 nC @ 4.5 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds5000 pF @ 25 V
FET Feature-
Power Dissipation (Max)200W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220AB
Package / CaseTO-220-3
