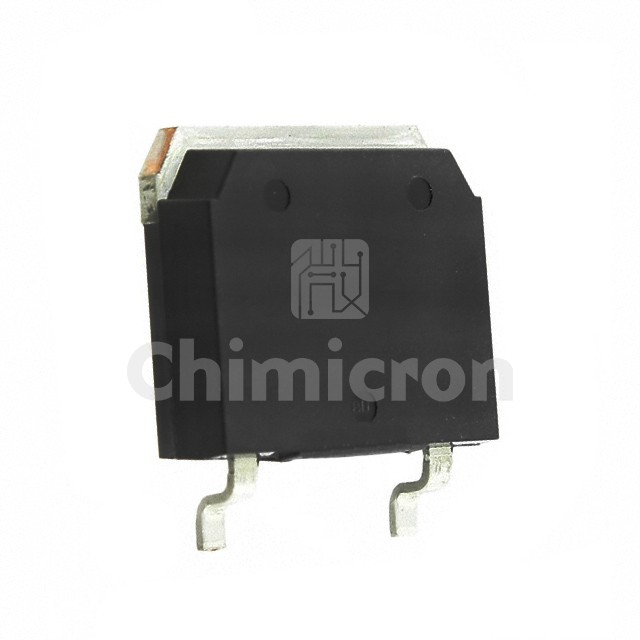

IXFT12N100Q
Manufacturer: Wickmann / Littelfuse
Description: MOSFET N-CH 1000V 12A TO268
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HiPerFET™
In Stock:1000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IXFT12N100Q Wickmann / Littelfuse at chimicron.com. We have 1000 pieces of IXFT12N100Q in stock available now. Submit an inquiry for IXFT12N100Q or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHiPerFET™
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)1000 V
Current - Continuous Drain (Id) @ 25°C12A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.05Ohm @ 6A, 10V
Vgs(th) (Max) @ Id5.5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs90 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2900 pF @ 25 V
FET Feature-
Power Dissipation (Max)300W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-268
Package / CaseTO-268-3, D³Pak (2 Leads + Tab), TO-268AA
