STSJ100NH3LL
Manufacturer: STMicroelectronics
Description: MOSFET N-CH 30V 100A 8SOIC
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: STripFET™ III
In Stock:5000000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STSJ100NH3LL STMicroelectronics at chimicron.com. We have 5000000 pieces of STSJ100NH3LL in stock available now. Submit an inquiry for STSJ100NH3LL or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSTripFET™ III
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.5mOhm @ 12.5A, 10V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs40 nC @ 4.5 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds4450 pF @ 25 V
FET Feature-
Power Dissipation (Max)3W (Ta), 70W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-SOIC-EP

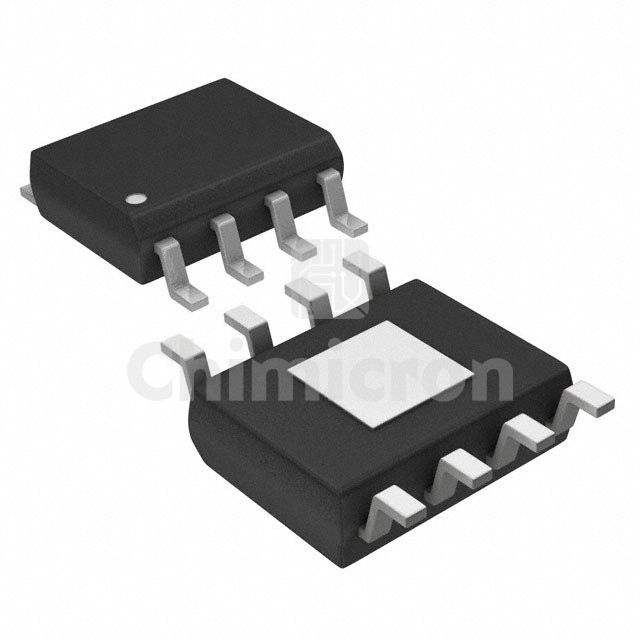

Package / Case8-SOIC (0.154", 3.90mm Width) Exposed Pad
