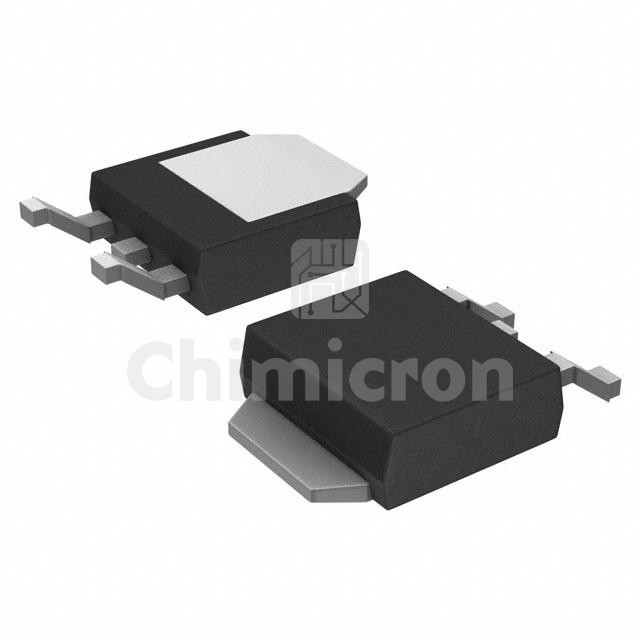

NTD6600NT4G
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 100V 12A DPAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:80000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NTD6600NT4G Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 80000 pieces of NTD6600NT4G in stock available now. Submit an inquiry for NTD6600NT4G or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C12A (Ta)
Drive Voltage (Max Rds On, Min Rds On)5V
Rds On (Max) @ Id, Vgs146mOhm @ 6A, 5V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs20 nC @ 5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds700 pF @ 25 V
FET Feature-
Power Dissipation (Max)1.28W (Ta), 56.6W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDPAK
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
