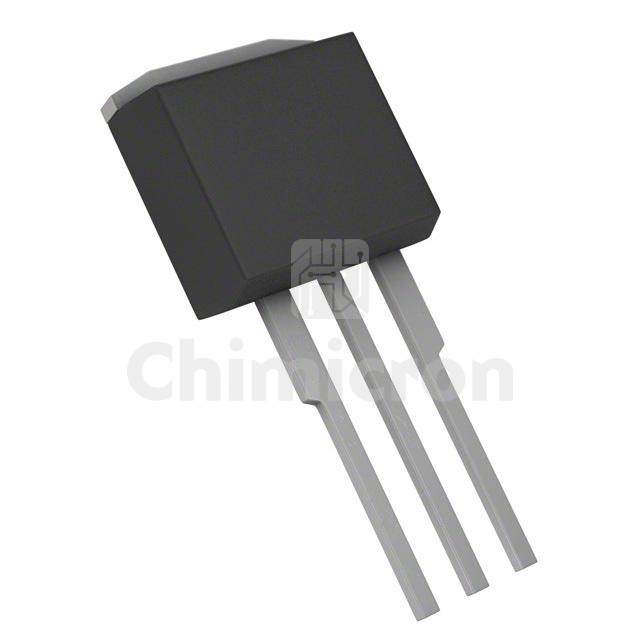

IRL540NLPBF
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 100V 36A TO262
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:500000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRL540NLPBF IR (Infineon Technologies) at chimicron.com. We have 500000 pieces of IRL540NLPBF in stock available now. Submit an inquiry for IRL540NLPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C36A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4V, 10V
Rds On (Max) @ Id, Vgs44mOhm @ 18A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs74 nC @ 5 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds1800 pF @ 25 V
FET Feature-
Power Dissipation (Max)3.8W (Ta), 140W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-262
Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA
