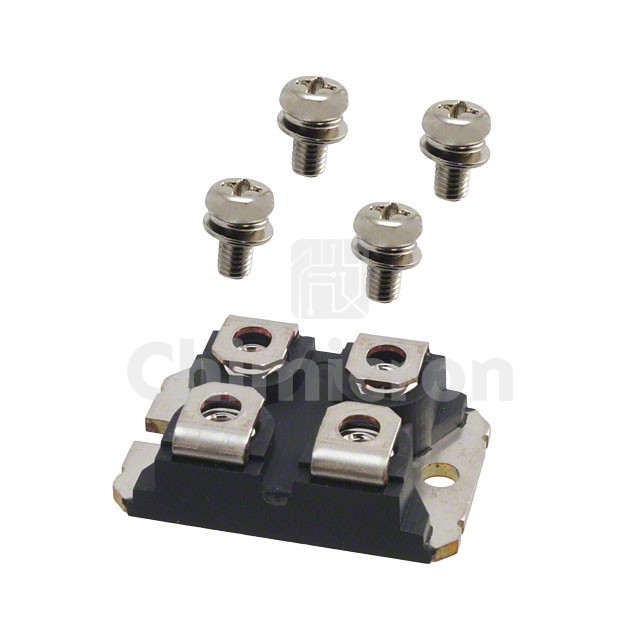

APT5012JN
Manufacturer: Microsemi
Description: MOSFET N-CH 500V 43A ISOTOP
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: POWER MOS IV®
In Stock:40000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the APT5012JN Microsemi at chimicron.com. We have 40000 pieces of APT5012JN in stock available now. Submit an inquiry for APT5012JN or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPOWER MOS IV®
PackageTray
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)500 V
Current - Continuous Drain (Id) @ 25°C43A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs120mOhm @ 21.5A, 10V
Vgs(th) (Max) @ Id4V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs370 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds6500 pF @ 25 V
FET Feature-
Power Dissipation (Max)520W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Supplier Device PackageISOTOP®
Package / CaseSOT-227-4, miniBLOC
