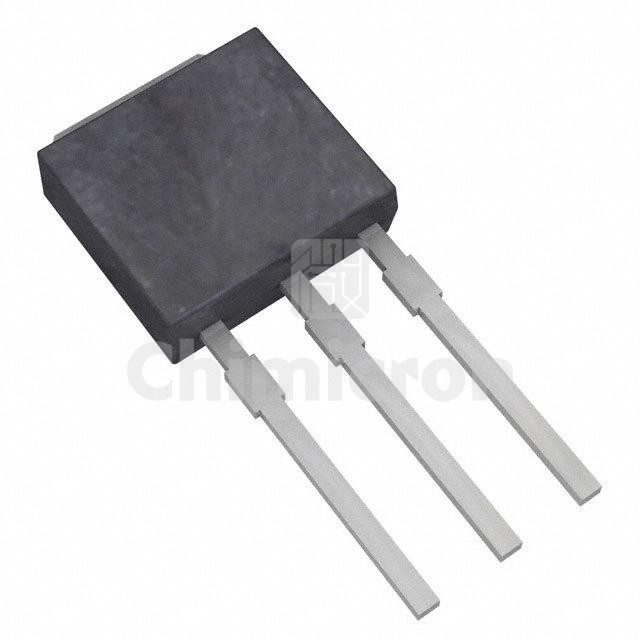

RFD12N06RLE
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 60V 18A IPAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: UltraFET™
In Stock:40000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the RFD12N06RLE Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 40000 pieces of RFD12N06RLE in stock available now. Submit an inquiry for RFD12N06RLE or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesUltraFET™
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C18A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs63mOhm @ 18A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs15 nC @ 10 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds485 pF @ 25 V
FET Feature-
Power Dissipation (Max)40W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageI-PAK
Package / CaseTO-251-3 Short Leads, IPak, TO-251AA
