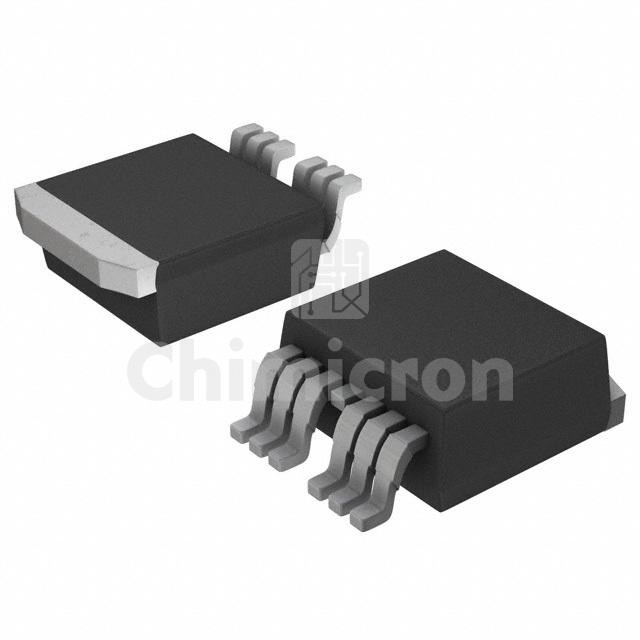

IRF1405ZSTRL7PP
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 55V 120A D2PAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:5000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRF1405ZSTRL7PP IR (Infineon Technologies) at chimicron.com. We have 5000 pieces of IRF1405ZSTRL7PP in stock available now. Submit an inquiry for IRF1405ZSTRL7PP or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)55 V
Current - Continuous Drain (Id) @ 25°C120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs4.9mOhm @ 88A, 10V
Vgs(th) (Max) @ Id4V @ 150µA
Gate Charge (Qg) (Max) @ Vgs230 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5360 pF @ 25 V
FET Feature-
Power Dissipation (Max)230W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD2PAK
Package / CaseTO-263-7, D²Pak (6 Leads + Tab), TO-263CB
